探针
-
型号：探针
品牌：奕叶探针台

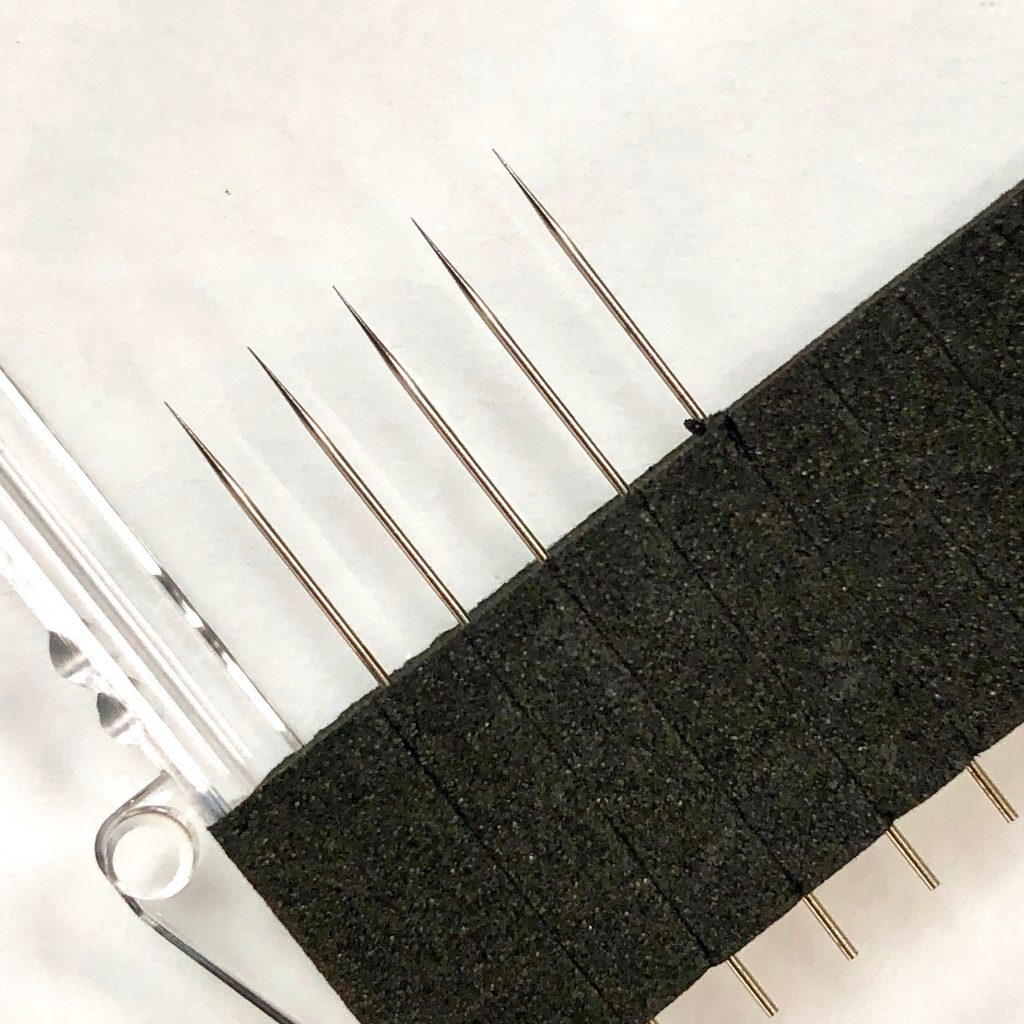

现货供应 材质有 钨钢 针尖小100 nm 0.1 micron 可选择硬针，软针，弯针及电镀金 铍化铜针尖小10micron 可要选择硬针，弯针及电镀金
现货供应 材质有 钨钢 针尖小100 nm 0.1 micron 可选择硬针，软针，弯针及电镀金 铍化铜针尖小10micron 可要选择硬针，弯针及电镀金
规格:
- Tungsten and BeCu tips are 20 mil shank at 1.26″ length.

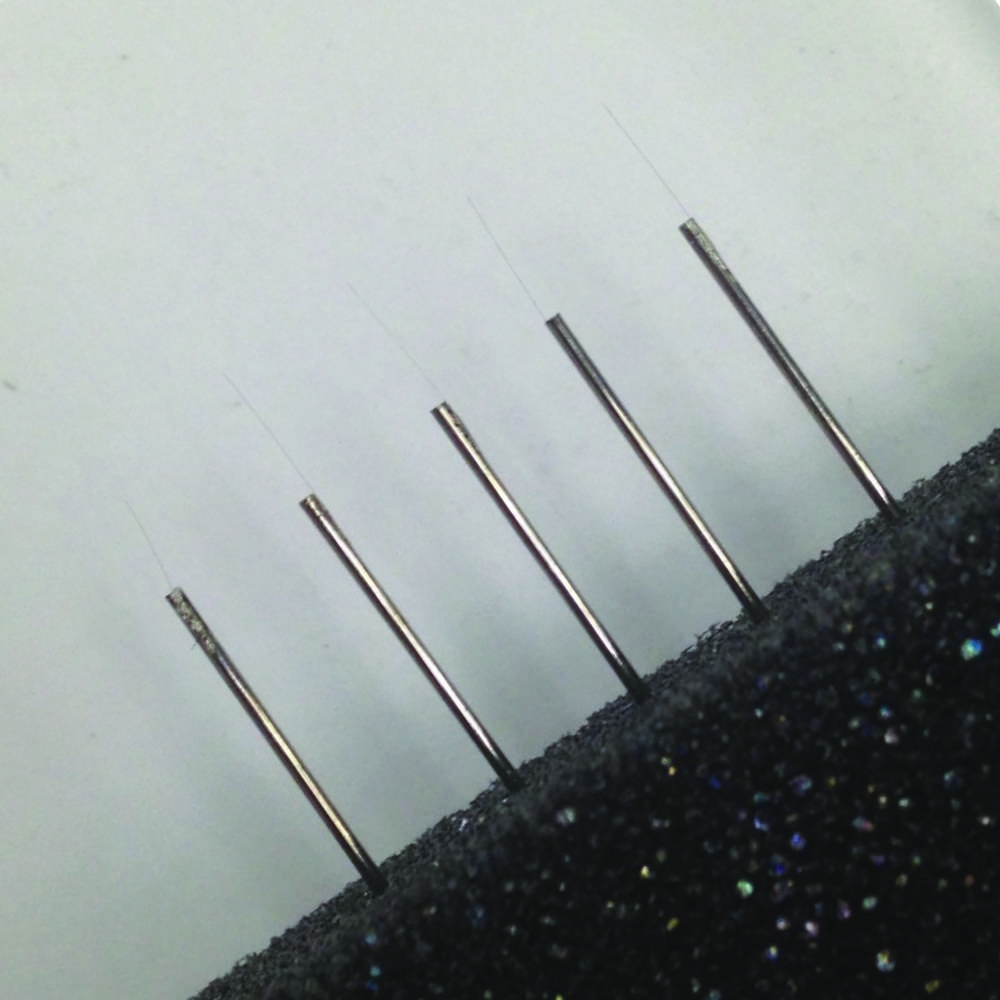

- Cat-whiskers are 20 mil Tungste shank at 2.2″ length.
- Gold Plated On Request for 10 µm or larger
- Bended Tips On Request
|
型号
|
针尖直径
|
材质
|
单盒包装数量 |
|
TW20-4
|
0.4 μm | Cat-Whisker |
5
|
|
TW20-7
|
0.7 μm | Cat-Whisker |
10
|
|
T20-10
|
1 μm | Solid Tungsten |
10
|
|
T20-50
|
5 μm | Solid Tungsten |
10
|
|
T20-100
|
10 μm | Solid Tungsten |
10
|
|
T20-150
|
15 μm | Solid Tungsten |
10
|
|
C20-150
|
15 μm | Solid BeCu |
10
|
|
T20-200
|
20 μm | Solid Tungsten |
10
|
|
T20-1000
|
100 μm | Solid Tungsten |
10
|
|
T20-2000
|
200 μm | Solid Tungsten |
10
|
|
P15-51
|
200 μm | BeCu Spring |
5
|
